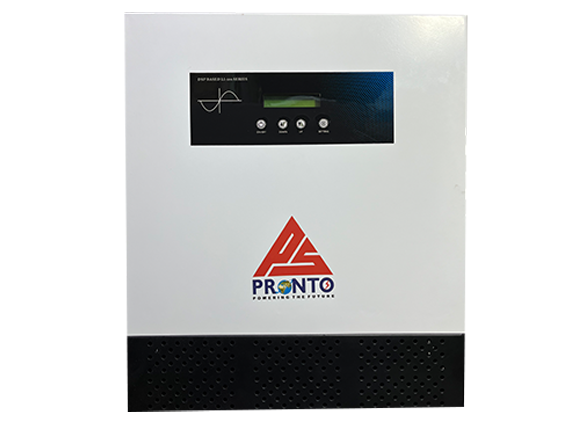

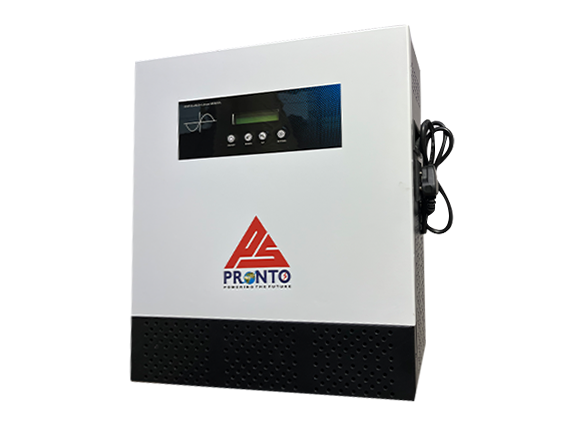

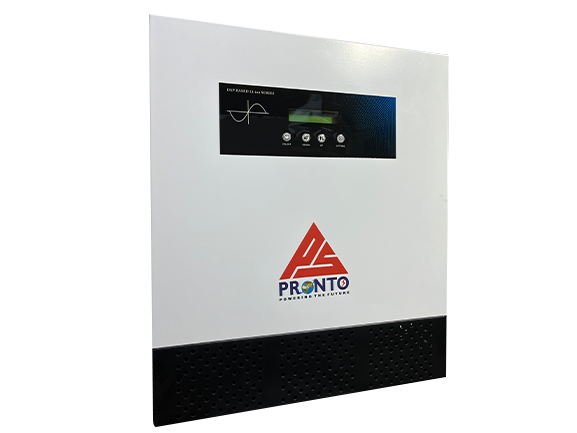

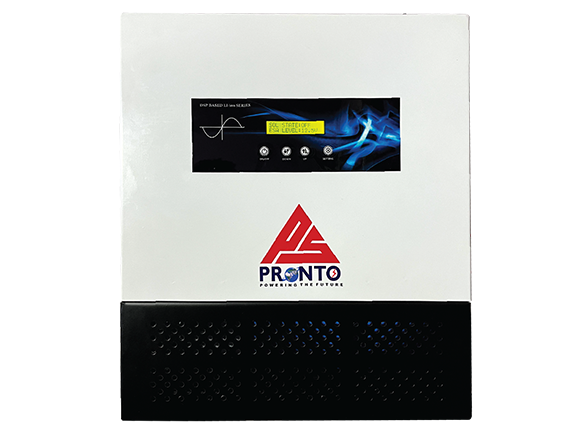

JAL 12V (900VA-1100VA) NON SOLAR PCU
Our USP:
- Zero Volt Pickup
- Ready For Lithium
- Four Charging Profile for Lithium
- Mains Reverse Feed Protected
- Designed For Heavy Load according to Models Rating
- Low consumption (electrolytic / acid) Technology
- Optional Remote Monitoring Available
- Power Saving Technology (Inverter Cost is recovered in 3-4 Years) Optional
PRONTO RENEWABLES ENERGY PVT LTD | ||||
| PRONTO JAL SERIES - 12V (INBUILT LITHIUM BATTERY) - SPECIFICATIONS | ||||
| INVERTER RATING (KVA) | 900VA | 1100VA | ||
| BATTERY VOLTAGE | 12.8V | 12.8V | ||
| BMS CAPACITY | 100AH 12.8V LITHIUM IRON PHOSPHATE (LiFePO4) | |||
| DESIGN | LOW FREQ. TRANSFORMER BASED DESIGN | |||
| USP OF THE PRODUCT | LITHIUM COMPATIBLE READY FOR LITHIUM,LOW ELECTROLYTIC/ACID CONSUMPTION TECHNOLOGY,LEAD ACID BATTERY EQUALISATION MODE,VOLTAGE REGULATION UPTO 165V OPTIONAL | |||
| LITHIUM COMPATIBLE (LITHIUM SPECIAL) | 4 TYPE CHARGING PROFILE FOR LITHIUM BATTERY | |||
| A | INVERTER | |||
| 1 | No. of Phases/Connection Type | 1Phase/2wire | ||
| 2 | Nominal Output Voltage/Frequency (Volts/Hz) | 220/50hz | 220/50hz | |
| 3 | Nominal VA Capacity (VA) | 900 | 1100 | |
| 4 | Battery Discharging Current (A) | 60 | 73 | |
| 5 | Voltage Regulation (At No Load) | ±2% | ±2% | |
| 6 | Freq Regulation (At No Load) | ±0.5 Hz | ±0.5 Hz | |
| 7 | THD | >4% | >4% | |
| 8 | Load Power Factor | 0.8 lag to unity | ||
| 9 | Over Loads : | 100-105% - 60 sec | ||
| 10 | 105-110% - 30 sec | |||
| 11 | 110-120% - 2 sec | |||
| B | BATTERY HIGH/LOW CUT VOLTAGE | |||
| 1 | Lithium (LFP) Low Batt. Alarm | PROFILE-1 | 11.4 | 11.4 |
| 2 | Lithium (LFP) Low Batt. Cut | 11.2 | 11.2 | |
| 3 | Lithium (LFP) High Batt./full Charge Cut | 13.8 | 13.8 | |
| 4 | Lithium (LFP) Low Batt. Alarm | PROFILE-2 | 11.4 | 11.4 |
| 5 | Lithium (LFP) Low Batt. Cut | 11.2 | 11.2 | |
| 6 | Lithium (LFP) High Batt./full Charge Cut | 14 | 14 | |
| 7 | Lithium (LFP) Low Batt. Alarm | PROFILE-3 | 11.4 | 11.4 |
| 8 | Lithium (LFP) Low Batt. Cut | 11.2 | 11.2 | |
| 9 | Lithium (LFP) High Batt./full Charge Cut | 14.2 | 14.2 | |
| 10 | Lithium (LFP) Low Batt. Alarm | PROFILE-4 | 11.4 | 11.4 |
| 11 | Lithium (LFP) Low Batt. Cut | 11.2 | 11.2 | |
| 12 | Lithium (LFP) High Batt./full Charge Cut | 14.4 | 14.4 | |
| C | GRID CHARGER | |||
| 1 | Grid Voltage Range (Voltage Sync. Range) | 90V-280V (PHASE TO NEUTRAL) | ||
| 2 | Grid Frequency Range (Freq.Sync.Range) | 50 Hz ±5% | ||
| 3 | Max Battery Amps During Grid Charging (Amps) | 16A | ||
